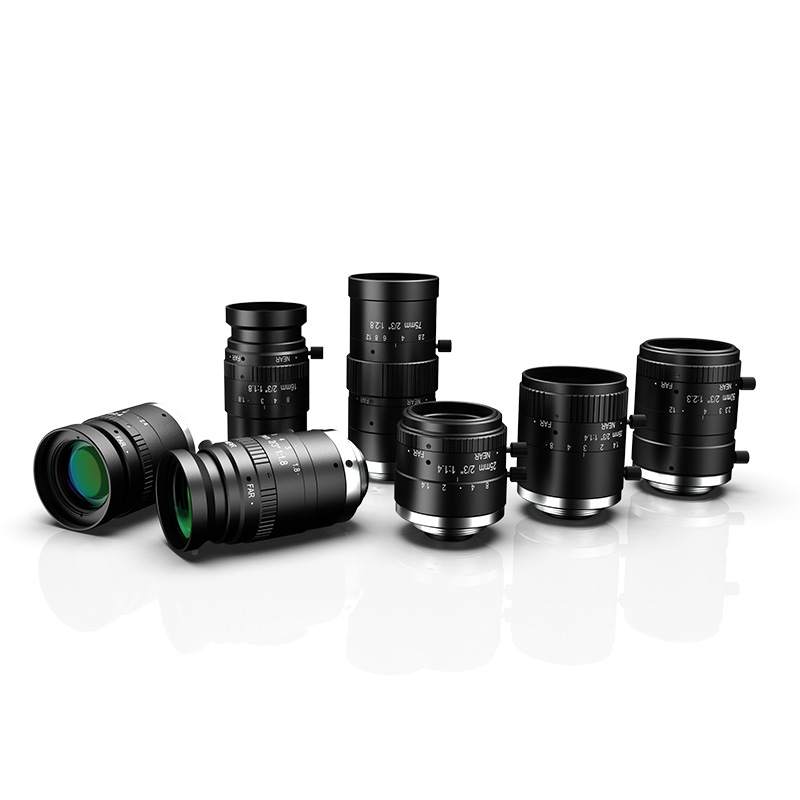

2/3" 5MP
产品详情
|
型号 Model No. |
焦距 EFL |
最大光圈 F No. |
靶面尺寸 Format Size |
工作距离 Working Distance |
TV畸变 Distortion（TV) |
视场角度(对角*水平*垂直) FOV(D*H*V) |
滤镜螺纹 Filter Size |
||
| 2/3" | 1/2" | 1/3" | |||||||
| FA35A08 | 8mm | F2.4 | 2/3" | 0.1m-∞ | <0.18% | 66.6°*55.5°*43.1° | 51.7°*42.2°*32.3° | 40.1°*32.3°*24.5° | M34-P0.5 |
| FA35A12 | 12mm | F1.8 | 2/3" | 0.1m-∞ | <0.19% | 48°*39.2°*29.9° | 36.5°*29.3°*22.2° | 27.4°*22.1°*16.7° | M30.5-P0.5 |
| FA35A16 | 16mm | F1.8 | 2/3" | 0.1m-∞ | <0.06% | 38°*30.6°*23.2° | 28.1°*22.6°*17° | 21.3°*17°*12.8° | M30.5-P0.5 |
| FA35A25 | 25mm | F1.4 | 2/3" | 0.2m-∞ | <0.1% | 24.9°*20.1°*15.2° | 18.3°*14.7°*11° | 13.7°*11°*8.3° | M27-P0.5 |
| FA35A35 | 35mm | F1.4 | 2/3" | 0.3m-∞ | <0.08% | 18.2°*14.7°*11° | 13.3°*10.7°*8° | 10.1°*8°*6° | M34-P0.5 |
| FA35A50 | 50mm | F2.3 | 2/3" | 0.4m-∞ | <0.06% | 11.4°*9.2°*6.9° | 8.3°*6.7°*5° | 6.2°*5°*3.8° | M30.5-P0.5 |
| FA35A75 | 75mm | F2.8 | 2/3" | 0.6m-∞ | <0.06% | 8.4°*6.7°*5° | 6.1°*4.9°*3.7° | 4.6°*3.7°*2.7° | M34-P0.5 |
